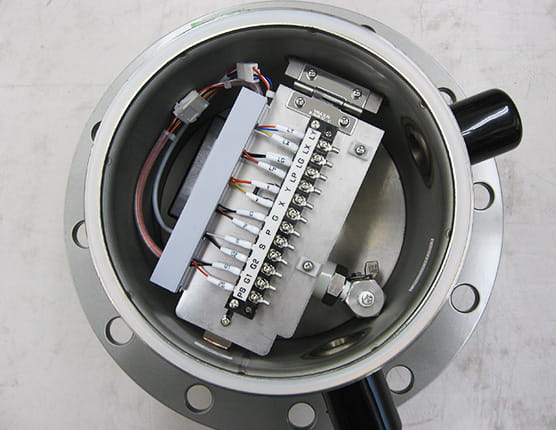

CMS (Cargo Monitoring System)

Constantly manage cargo tanks with digital signals and networking.

CMS(Cargo Monitoring System)

Over 4,000 vessels

Contact Us

Depending on the type of ship(chemical,petroleum product, crude oil, LPG, etc.), as well as on the tank structure, we can offer radar type, pipe radar type and float type gauges to develop an optimal system. In addition, between the sensor and the control panel is two-way communication, which continually monitors the condition of the system. Because the system is digitalized and networked, it is possible to easily cope with expansions and upgrades of the system to comply with rule revisions or particular customer requirements.

CMS Series Applications

  • Chemical
  • Product
  • Crude oil
  • LPG Carriers (Deep Sea / Coastal)

System Features

Digital signal communications between sensors and control panel

  1. Liquid level, pressure and temperature are sent through one twist pair cable(to reduce cabling)
  2. Two-way communication constantly monitors sensor status(self-diagnostics)

LAN, or serial signals(RS422, RS485, RS232C)can be arranged from the panel depending on the application

LAN signal, SERIAL signal(RS422, RS485, RS232C)

system is simple and networked

system is simple and networked

System Configuration

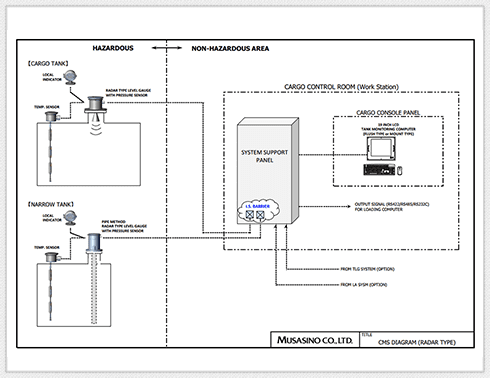

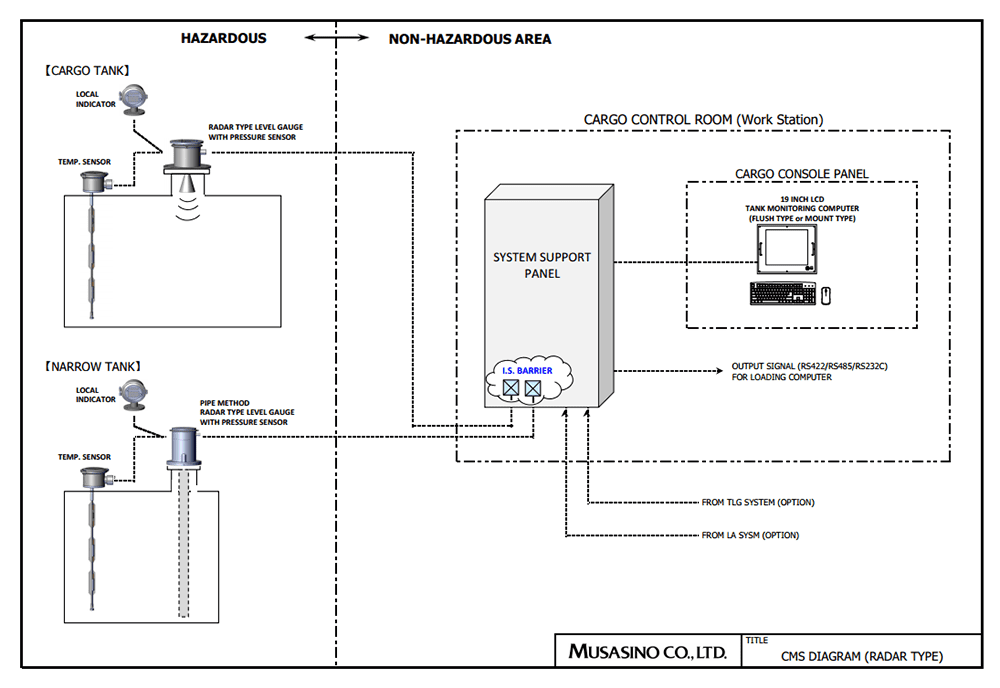

Radar Type Level Gauge System(example)

Radar Type Level Gauge System(example)

A basic radar type system configuration

  • Radar Type Liquid Level Gauge(with built-in tank pressure monitoring)
  • Pipe Radar Type Level Gauge(with built-in tank pressure monitoring)
  • Temperature Detector
  • Local Indicator(Option)
  • Control Panel(including intrinsically safe circuit)
  • 19-inch LCD Monitoring Computer(hardware & software)
  • Various Signal Outputs

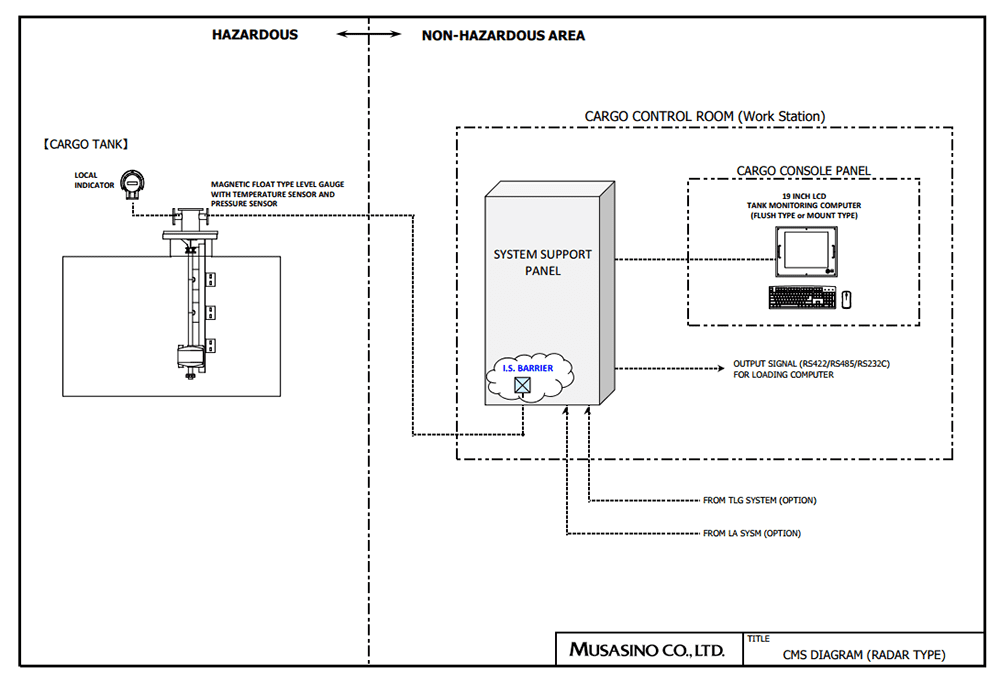

Float Type Level Gauge System(example)

Float Type Level Gauge System(example)

A basic float type system configuration

  • Float Type Level Gauge(with built-in tank pressure monitoring and tank temperature sensors)
  • Local Indicator(Option)
  • Control Panel(including intrinsically safe circuit)
  • 19-inch LCD Monitoring Computer(hardware & software)
  • Various Signal Outputs

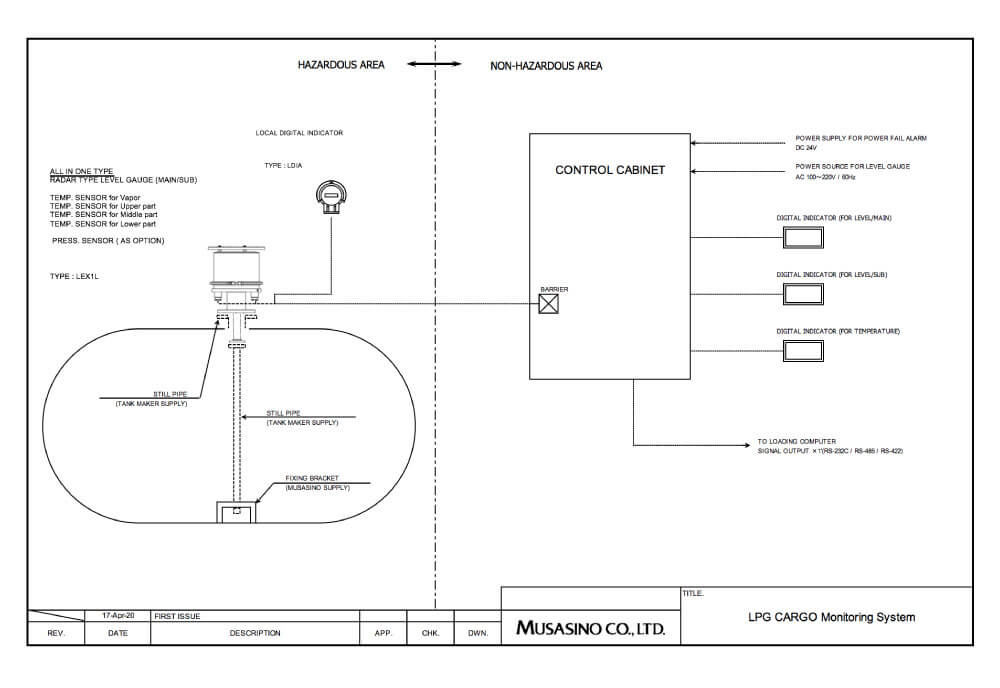

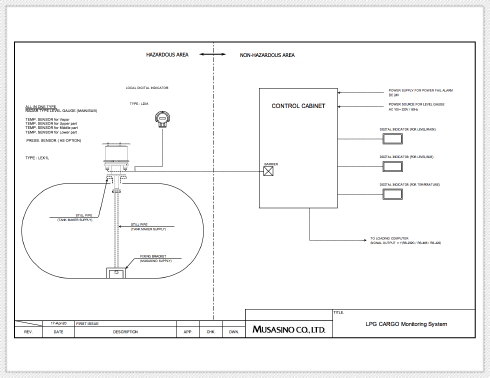

Radar Type Level Gauge System for LPG(example)

Radar Type Level Gauge System for LPG(example)

A basic radar type system configuration

  • Pipe Radar Type Level Gauge (dual level measurement : primary / secondary)
  • Built-in tank pressure monitoring
  • Temperature Detector
  • Local Indicator(Option)
  • Control Panel(including intrinsically safe circuit)
  • Various Signal Outputs
