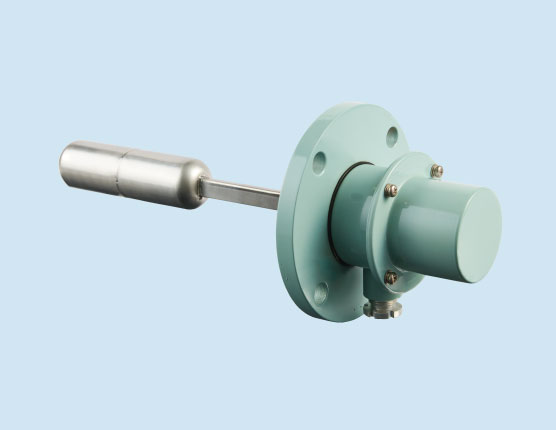

Horizontal float switch Float Switch

Easy-to-Use and Reliable; A top domestic seller
The compact design is ideal for deck tanks.*2017 sales (according to internal research)

Horizontal float switch Float Switch

The horizontal float switch can be attached to the side wall at high and low level alarms, and for automaticly starting and stopping pumps. When the liquid surface reaches the alarm or control point, the float arm moves, activating the alarm or control contact.
A top seller in the domestic market

Product Features

The compact design is optimal for level gauging on deck tanks.

The horizontal Float Switch features a compact design that makes it great for small volume tanks. Therefore, it has gained a reputation for use on relatively small tanks in the engine room.

It can be applied as an alarm device to turn pumps on and off.

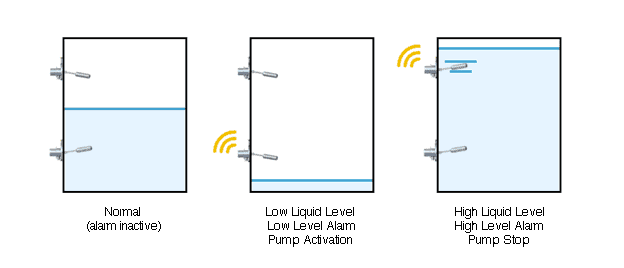

The alarm signal is output by the micro-switch. It is possible to turn pumps on and off with the output of the alarm signal as the liquid level moves up or down. In addition to being used as a warning device, it can help to prevent accidents.(Reference Drawing)

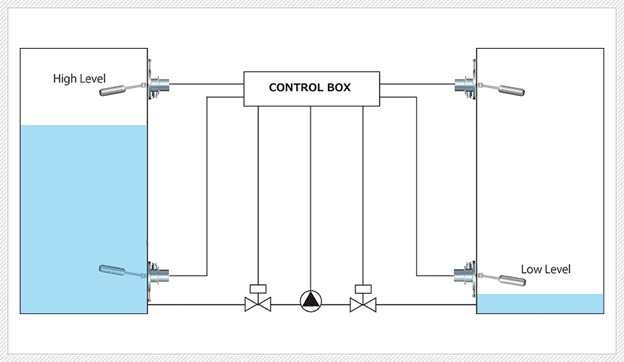

Example operation on a deck tank

Example Application

Example of Float Switch Application

Example of Float Switch Application
