Product features
Accurate Liquid Volume Measurement
By measuring the inclination of the ship, the liquid level of each tank can be corrected and the correct liquid volume can be calculated.
This provides easily understood and accurate information, eliminating the need for frequent calculations and greatly reducing the burden on crew members.
Self-diagnosis Function
The power supply voltage, circuit voltage, and circuit current are constantly monitored. When a failure or abnormality in the connected sensor or control unit is detected, the LED lights up to alert the user for an immediate check.
Angle Indication LED
An LED mounted on the board lights up when the set angle is reached.
Measurement Data Recording Function
The data measured by the sensor can be transmitted to upstream equipment.
Measurement data can be output to VDR

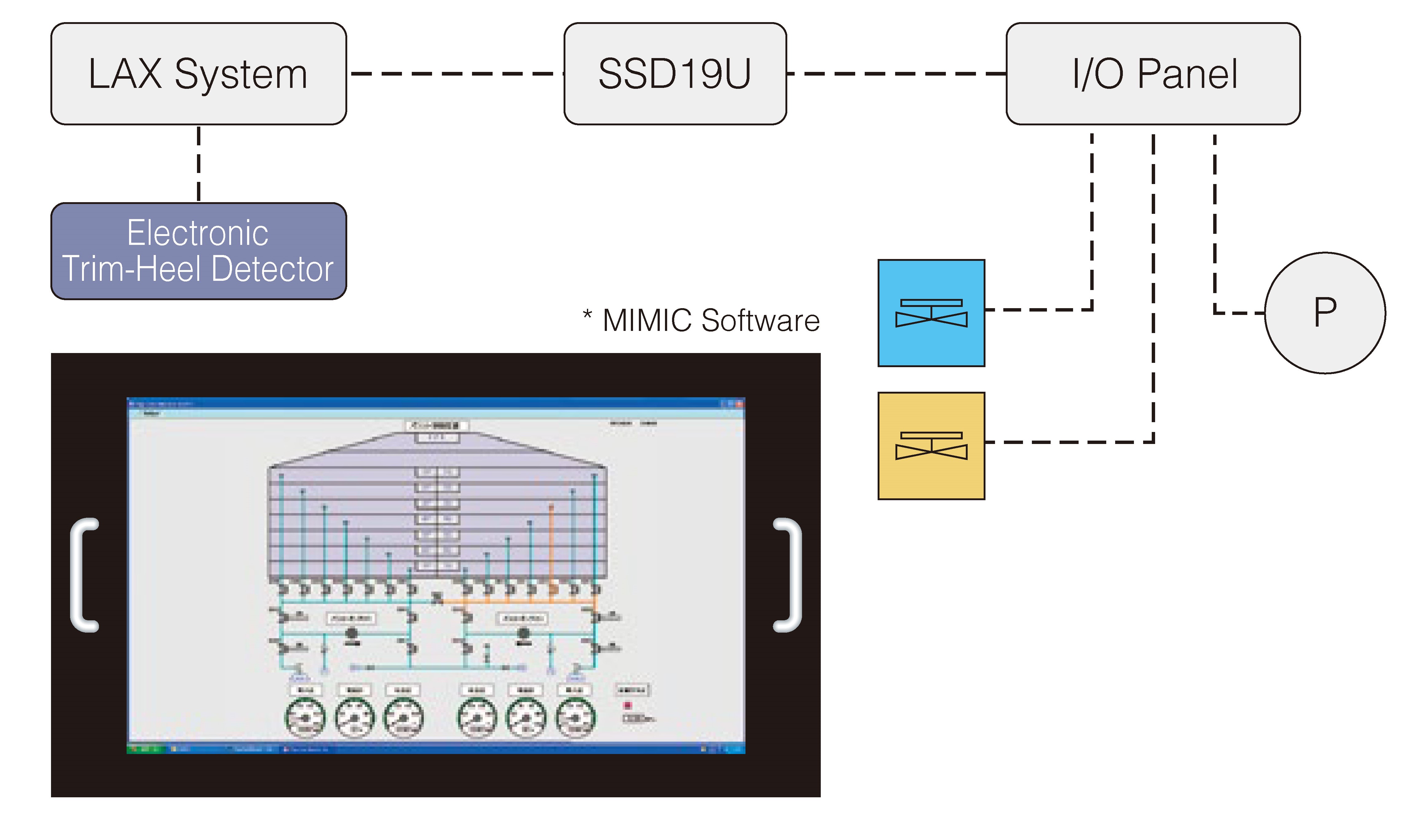

Automation of Hull Attitude Control
An automated system can be constructed by adding an electronictrim heel detector to the valve and pump controls. The hull attitude is always optimized, resulting in stable, comfortable and safe navigation,
and reduced fuel consumption. The burden on the crew is greatly reduced, since they only need to check and almost no operation is required.
General Specifications
| Ambient Operating Temperature | 0～55℃ |
|---|---|
| Protection Class | IP44 |
| Interface | LAN |
| Power Supply Voltage | DC12～24V |
| Current Consumption | 100mA |
| Measurement Range | ± 10°/Standard Type ± 5°/ High-Accuracy Type |
| Measurement Accuracy | ± 0.2°/ Standard Type ± 0.05°/ High-Accuracy Type |
| Resolution | 0.001° |
| External Dimensions | 280×240×134mm |
| Weight | Approx. 2kg |

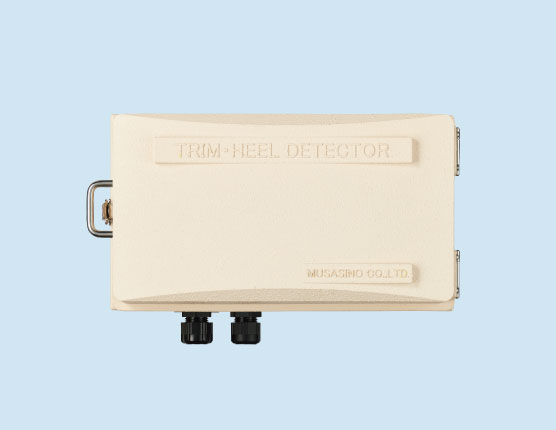

Electronic Trim-Heel Detector Line
Normal
Sensor accuracy is ±0.2°
High Spec
Sensor accuracy is ±0.05°
Standard-2 set
Equipped with two sensors with an accuracy of ±0.2 degrees
