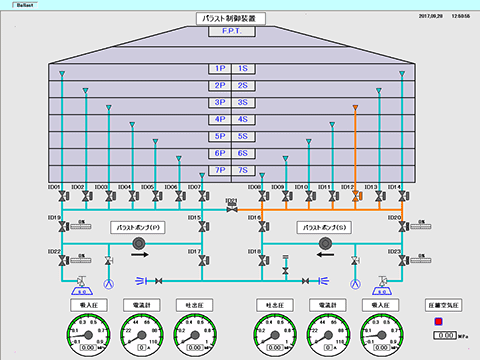

Smart Network and Mimic Software for Valve Control Musasino builds a digital network with level gauging and onboard equipment, and a timely, easy-to-understand display for safe cargo handling and ballasting operations.
Connecting the Smart Network and Valves to Mimic Software for Valve Control In addition to level gauging, the network can easily connect other onboard equipment such as lighting and ventilation equipment, and make possible centralized control and monitoring on one monitor.
For valve control, the following four types of systems are possible.
System Details
Hydraulic Details
Highly reliable and proven hydraulic system
Modularized flow meters as well as solenoids
Compact and light weight
Complete after-sales service

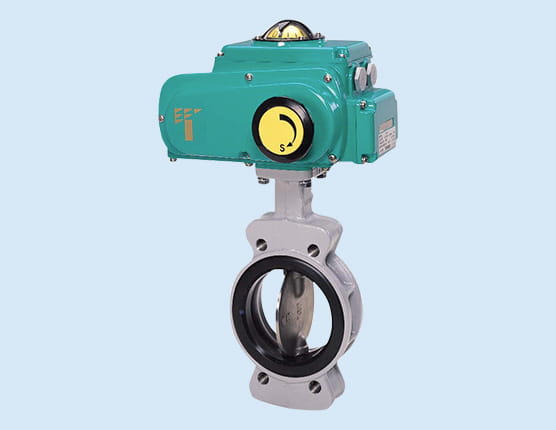

Electric System
Light weight, compact, and low cost
Applies to dry cargo ships Electro-Hydraulic system
Light weight and compact, and uses the same control system as the electric system
Compact actuators drive large diameter valves
Available for explosion protection and submerged specifications
Electro-Hydraulic system
Light weight and compact, and uses the same control system as the electric system
Compact actuators drive large diameter valves
Available for explosion protection and submerged specifications
Pneumatic System
Excellent cost performance
In addition to dry cargo ships, it can also be applied to tanker ballast lines
