GAS (Liquid GAS System)

Reliable Technology and Robust Design for High-Precision Measurement of Liquefied Gases

GAS(Liquid Gas System)

Musasino is one of Japan’s leading companies in the measurement of liquefied gases, including LNG, backed by extensive experience and advanced technical capabilities. Using both radar-type and float-type level gauges, we build optimized measurement systems based on customer requirements and tank specifications. Our proprietary network system and monitoring software enable integrated management from measurement to monitoring, delivering an efficient and highly reliable operating environment.Our radar-type level gauge features an all-in-one structure that integrates level, temperature, and pressure measurement within a single housing. Each sensor operates independently inside the unit, ensuring excellent maintainability and allowing safe servicing without opening the tank. In addition, the gauge’s unique self-calibration function automatically adjusts for environmental changes, maintaining long-term measurement stability and high accuracy.The most crucial requirement in liquefied-gas measurement is the reliability of the measured data. Our measurement systems consistently deliver accurate and stable data, contributing to safe operations and improved management efficiency for our customers.

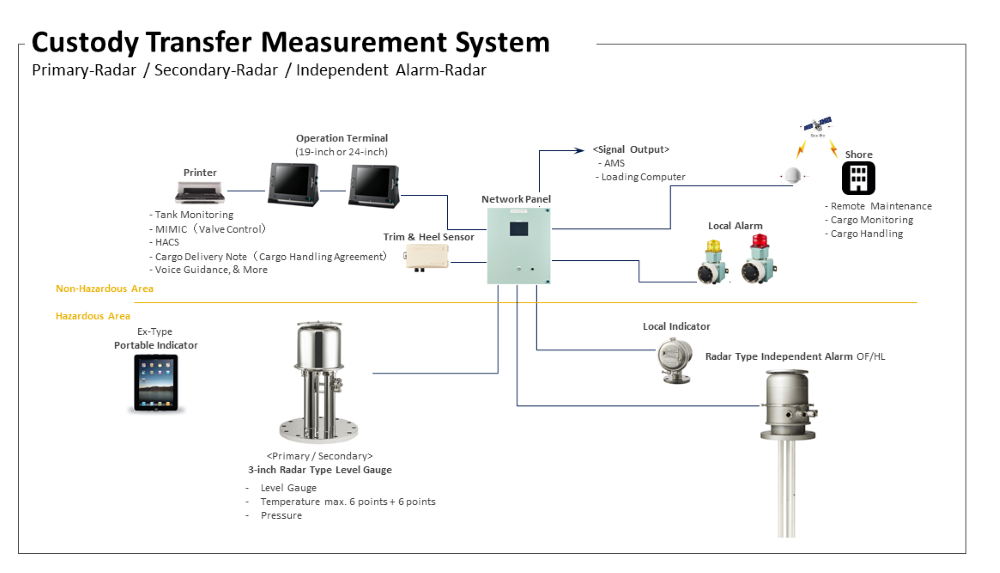

LNGCCustody Transfer Measurement System


A basic system configuration

  • Operation Terminal – Master / Slave
  • 3inch All in One Radar
    1. Radar Type Level Gauge - Primary/Secondary
    2. Temperature Sensor 6points - Primary / Secondary
    3. Pressure Sensor - Primary/ Secondary
  • Radar type Independent Alarm – HL / OF
  • Local Indicator
  • Inclinometer

High-Precision Measurement Technology for Accurate LNG Transactions

High-precision level measurement minimizes uncertainty in LNG custody transfer, enabling accurate transactions based on energy content in accordance with international standards.

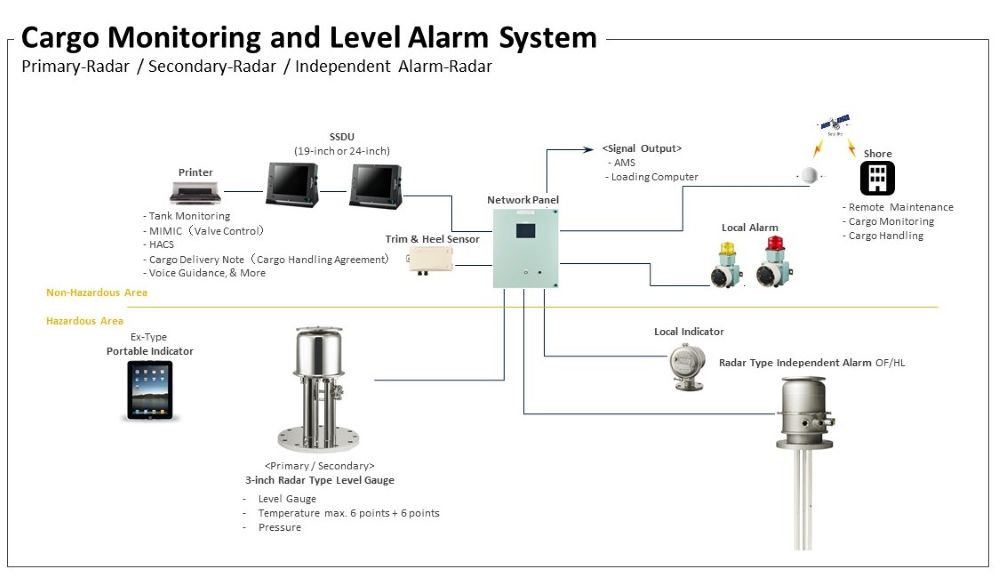

LPGSystem features


A basic system configuration

  • 3inch All in One Radar
    1. Radar Type Level Gauge - Primary/Secondary
    2. Temperature Sensor 6points - Primary / Secondary
    3. Pressure Sensor - Primary/ Secondary
  • Radar type Independent Alarm – HL / OF
  • Local Indicator
  • Inclinometer

Advanced Level Measurement Compatible with the Growing Demand for Next-Generation Fuels

As demand rises for next-generation fuels and transport media such as LPG, LCO₂, and ammonia, Musashino is equipped with both radar-type and float-type level gauges, providing high-precision and safe level measurement for these liquefied gases as well.

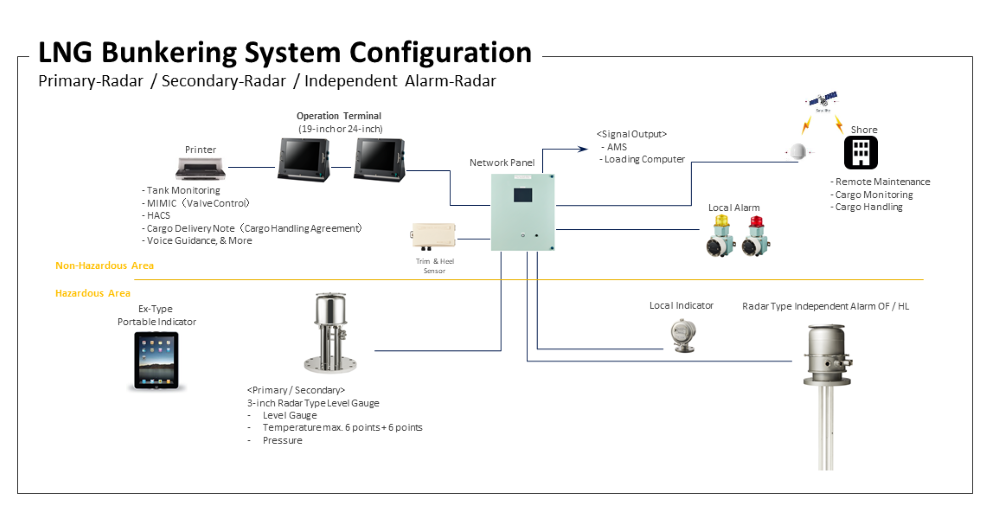

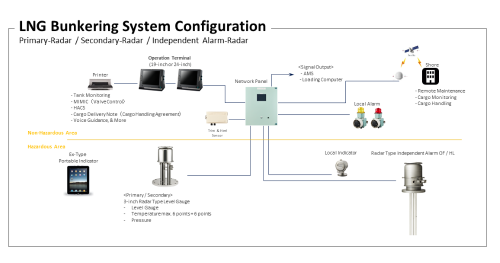

LNG BunkeringSystem configuration


Japan’s first LNG bunkering measurement has been achieved. Its reliable accuracy and safety have been proven for over five years.

  • Operation Terminal – Master / Slave
  • 3inch All in One Radar
    1. Radar Type Level Gauge - Primary/Secondary
    2. Temperature Sensor 6points - Primary / Secondary
    3. Pressure Sensor - Primary/ Secondary
  • Radar type Independent Alarm – HL / OF
  • Local Indicator
  • Inclinometer

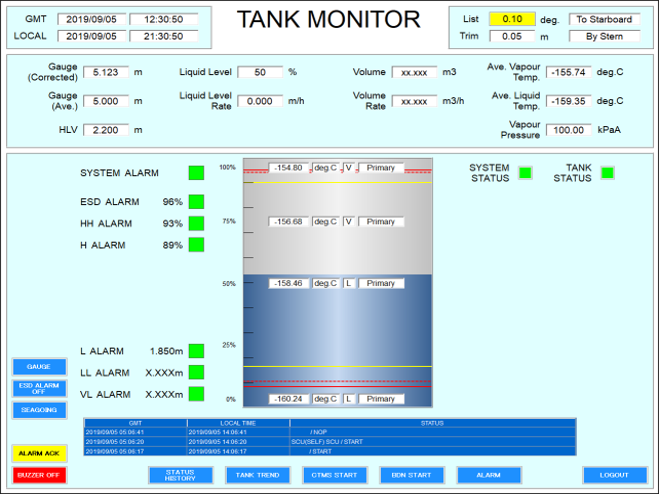

Calorific Value Calculation Software

CTMS(Custody Transfer Measurement System)By using the report data and LNG composition information, the gas volume can be converted into calorific value with dedicated software, allowing the generation of a Bunker Delivery Note (BDN) compliant with international standards. This ensures reliability in calculations and transparency in transactions during LNG delivery.

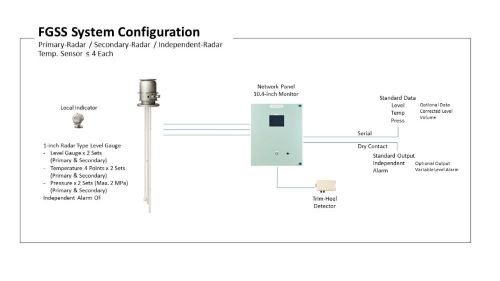

FGSSSystem features

FGSS

A basic system configuration

  • Operation Terminal – Master / Slave
  • 1inch All in One Radar
    1. Radar Type Level Gauge - Primary/Secondary
    2. Temperature Sensor 6points - Primary / Secondary
    3. Pressure Sensor - Primary/ Secondary
    4. Radar type Independent Alarm – 1point

With comprehensive measurement technologies, we support every type of fuel supply system.

Equipped with diverse measurement capabilities, Musasino can provide systems not only for FGSS but also for MeOH and AFSS.

FGSS Custom Monitor with volume calculation 10.4inch FGSS10.4inch.png
FGSS Standard Monitor 4.3inch FGSS4.3inch.png
